Consider a multi-agent system in which a fleet of communicating agents, such as robots or drones, explores an unknown environment (a building, a territory). Each agent gradually collects information about the topology of the place. Each node has a subjective and incomplete view of the environment, and limits on bandwidth, time or memory mean that no node ever holds the whole graph.

In this setting arises the distributed subgraph isomorphism problem: find an isomorphism between a given pattern graph and a subgraph of the global, distributed host graph. This can be used, for instance, to find escape routes or ways to reach specific areas.

This student project, by Anna Becchi and Idriss Riouak, covers the problem from its formal definition to an implementation. The implementation simulates the physical execution environment and includes a graphical interface and a test suite.

Implementation

The system is implemented with Akka, a toolkit for building concurrent and distributed systems on the JVM based on the actor model. Components communicate mainly through Akka’s Distributed Publish Subscribe in Cluster. A sender reaches all actors subscribed to a topic without knowing their references, which gives full location transparency between actor systems.

• SendToAll / Publish: the message is delivered to all subscribed actors, optionally excluding the sender.
• Send: the message is delivered to a single subscriber, optionally with location affinity.

Download the project from GitHub and run it with ./dsquack. The README describes the source layout, testing and log messages.

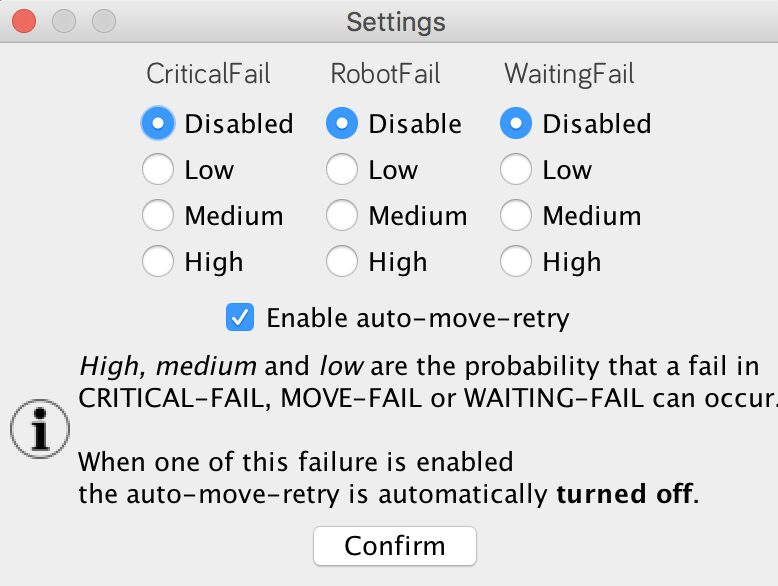

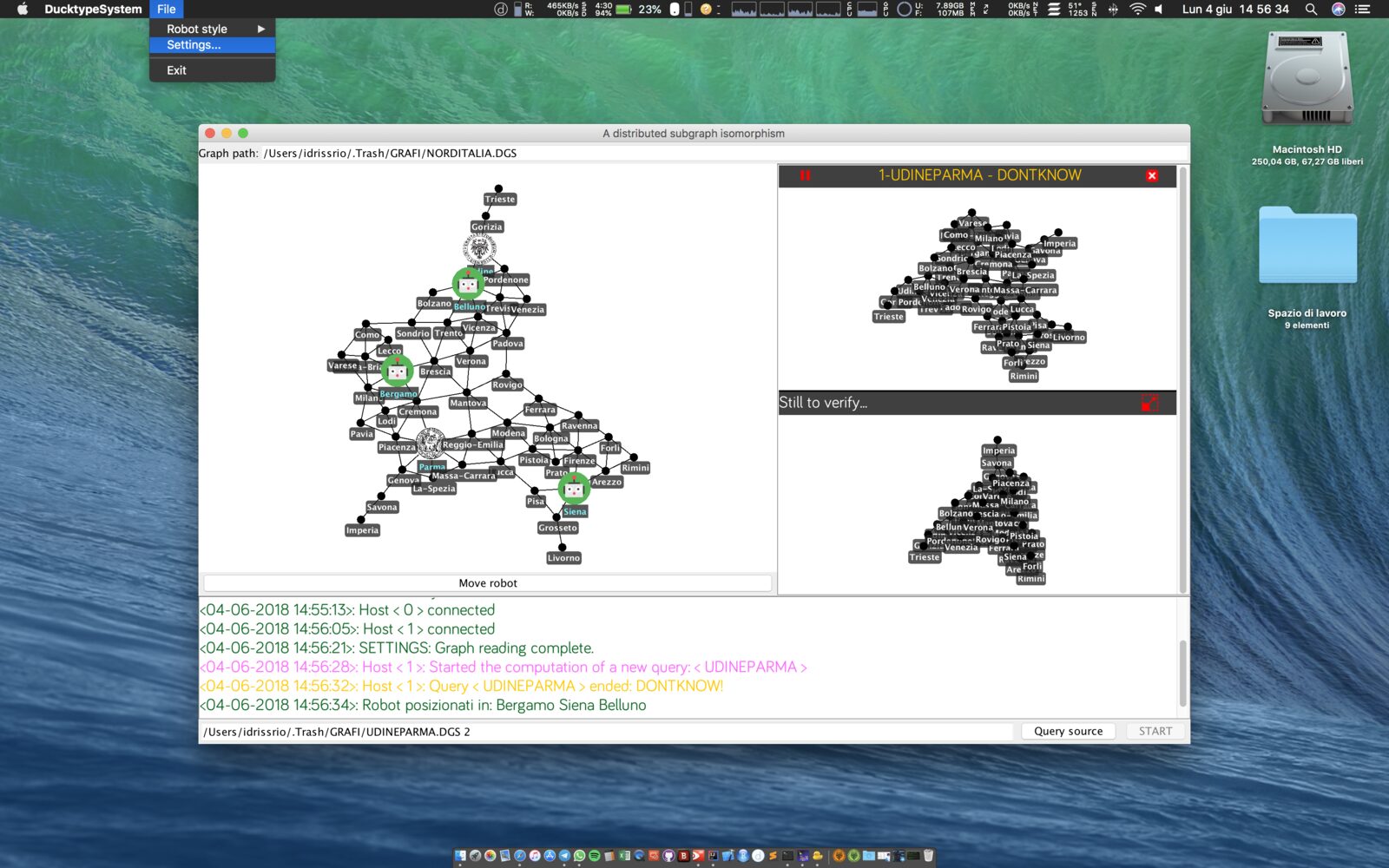

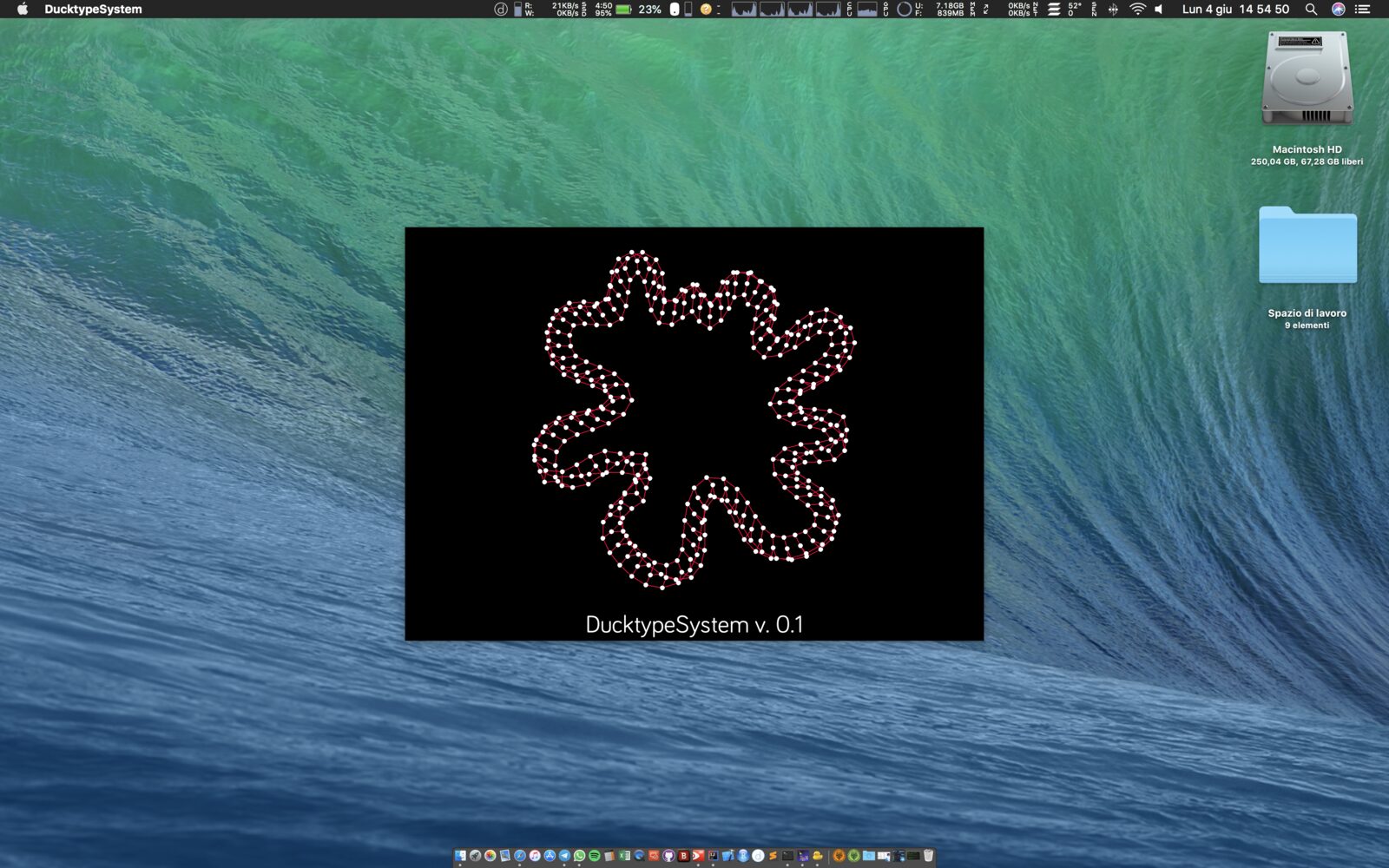

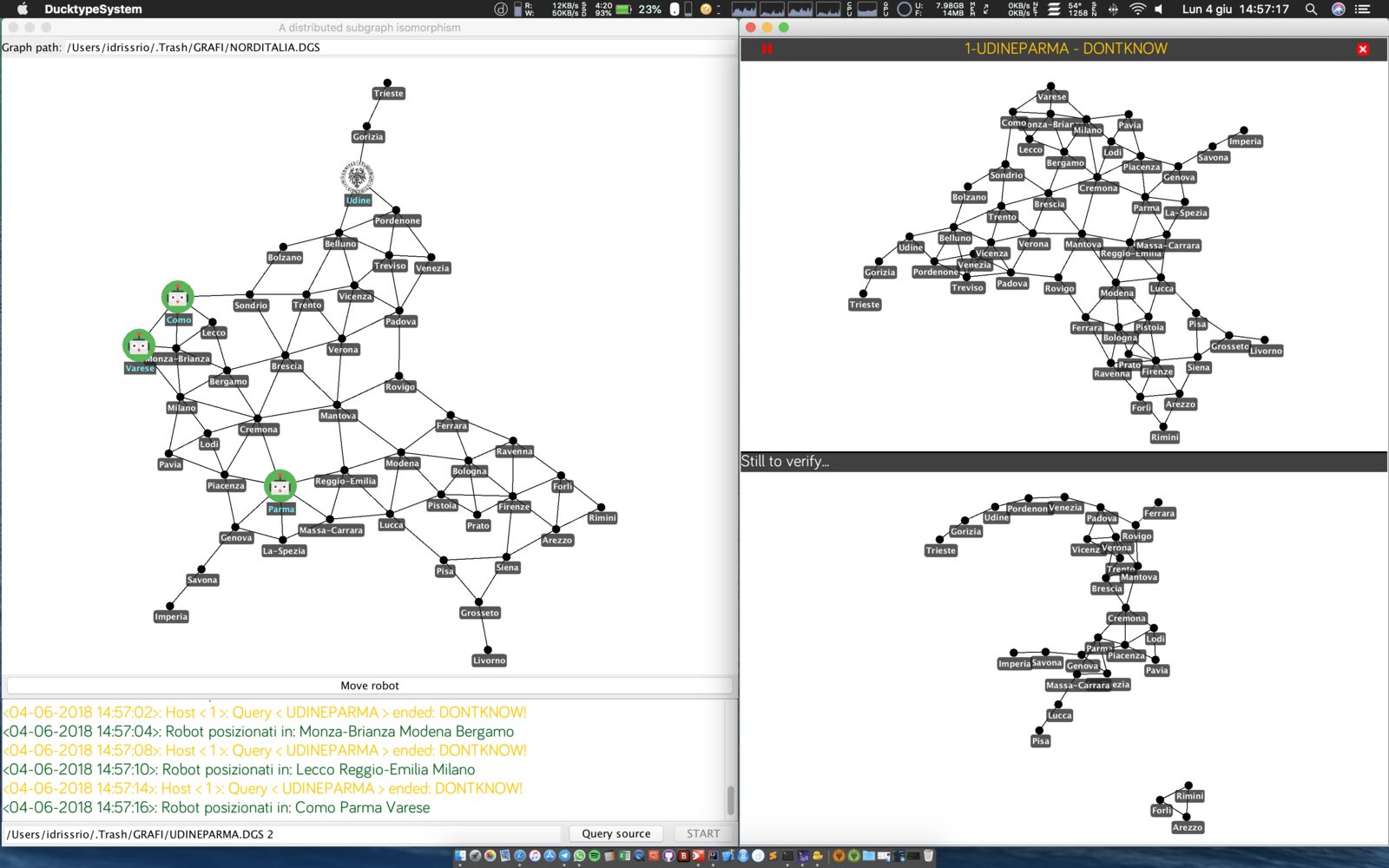

Screenshots
